The Musway Amplifier Lineup:
Specs, Power & How To Choose
The complete Musway amplifier range in one place: DSP amplifiers with processing built in, MX power amps, mono subwoofer amps, and standalone DSP processors. Power ratings, channel counts, dimensions, and current U.S. MSRP, organized so dealers and installers can spec the right amp the first time, and enthusiasts can understand why.
Integrated DSP vs Power Amp + Standalone DSP
Before channel count or power, settle how the customer wants to handle signal processing. That choice decides which half of the lineup you're shopping.
Integrated DSP Amp — The Smart Default
For most installs, an amp with DSP built in is the strongest mix of value, simplicity, and sound.
- One box, one harness, one app: less wiring, less rack space, faster labor.
- Lower total cost than a separate power amp plus a processor.
- Full tuning built in: crossovers, 31-band EQ, time alignment, presets.
- Cleaner quote for the customer, higher close rate for the shop.
MX Power Amp + DSP68 / TUNE12
Separate the amp from the processing when the build or the customer calls for it.
- You want a dedicated, high-channel-count processor doing the tuning.
- The customer is loyal to a DSP brand they already trust (keep the Musway power, swap the DSP).
- Large or evolving systems where amps and processing scale independently.
- Adding power to a system that already has a processor in place.
Amp + DSP In One Chassis
| Model | Class | DSP | Power Output | Dimensions (in) | MSRP |
|---|---|---|---|---|---|
| 4-Channel DSP Amplifiers | |||||
| D1S | AB | 6 Ch | 25W x4 @ 4Ω | 6.5 x 3.8 x 1.2 | $434.95 |
| M4nanoNEW | D | 8 Ch | 55W x4 @ 4/2Ω | 200W x2 brdg | n/a | $769.95 |
| M4+ | D | 8 Ch | 100W x4 @ 4/2Ω | 270W x2 brdg | 8.6 x 5.9 x 1.7 | $924.95 |
| 5-Channel DSP Amplifiers | |||||

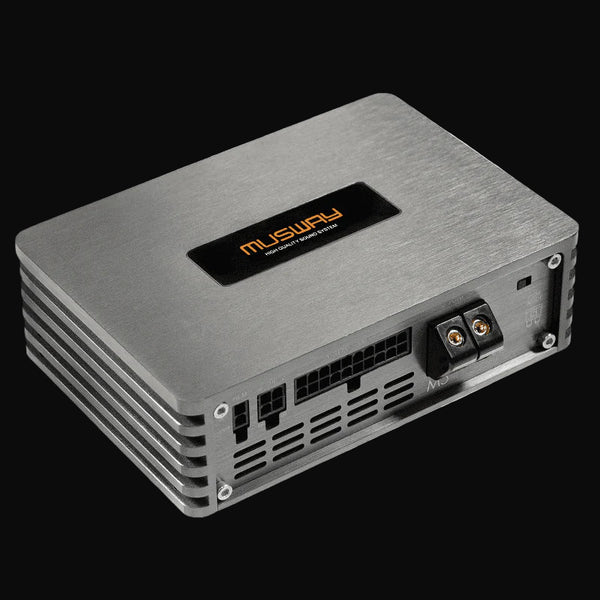

| M5 | D | 9 Ch | 50W x4 @ 4Ω + 300W x1 @ 2Ω | 5.9 x 4.1 x 1.7 | $774.95 |
| 6-Channel DSP Amplifiers | |||||
| M6 | D | 8 Ch | 80W x6 @ 4Ω | 260W x3 brdg | 8.6 x 5.9 x 1.7 | $1,049.95 |
| M6PRO | D | 10 Ch | 120W x6 @ 4Ω | 400W x3 brdg | 8.6 x 5.9 x 1.7 | $1,109.95 |
| 8-Channel DSP Amplifiers | |||||
| D8v4 | D | 10 Ch | 70W x8 @ 4Ω | 200W x4 brdg | 6.4 x 3.8 x 1.3 | $1,199.95 |
| M8 | D | 12 Ch | 80W x6 + 135W x2 @ 4Ω | 270W x3 + 440W x1 brdg | 11.2 x 5.1 x 1.4 | $1,954.95 |
| 10-Channel DSP Amplifiers | |||||
| M10 | D | 14 Ch | 80W x8 + 120W x2 @ 4Ω | 270W x4 + 440W x1 brdg | 11 x 6.5 x 1.7 | $2,334.95 |
| 12-Channel DSP Amplifiers | |||||
| M12 | D | 16 Ch | 85W x12 @ 4Ω | 240W x6 brdg | 14.5 x 5.2 x 1.4 | $2,464.95 |
DSP channel count exceeds amp channels because the processor also drives additional pre-outs for expansion amps. Crossovers, time alignment, and 31-band EQ are standard across the line.
Integrated DSP Build: M6PRO Active Front + Monoblock Sub
One M6PRO w/DSP runs a full active 3-way front stage from a single chassis, with a ONE.2000 added for the MG10 sub. The integrated-DSP approach: fewer boxes, full tuning built in.
Power Amps, Built To Pair With A DSP
| Model | Channels | Power Output | Dimensions (in) | MSRP |
|---|---|---|---|---|
| 2-Channel | ||||
| TWO.100 | 2 | 115W x2 @ 4Ω | 400W x1 brdg | 5.9 x 3.9 x 1.7 | $459.95 |
| P2 | 2 | 70W x2 @ 4Ω | 210W x1 brdg | 4.8 x 2.9 x 1.4 | $294.95 |
| 4-Channel | ||||
| FOUR.100 | 4 | 120W x4 @ 4Ω | 400W x2 brdg | 8.6 x 5.9 x 1.7 | $644.95 |
| 5-Channel | ||||
| FIVE.100+ | 5 | 115W x4 @ 4Ω | 600W x1 @ 1Ω sub | 11.6 x 5.9 x 1.7 | $864.95 |
| 6-Channel | ||||
| SIX.100 | 6 | 110W x6 @ 4Ω | 360W x3 brdg | 11.4 x 5.9 x 1.7 | $854.95 |
| 8-Channel | ||||
| EIGHT.100 | 8 | 100W x8 @ 4Ω | 360W x4 brdg | 11.8 x 5.9 x 1.7 | $1,219.95 |
FIVE.100+ is the one-amp standout: four full-range channels plus a dedicated mono sub channel in a single chassis.
Full Active System: DSP + Power Amp + Monoblock
A TUNE12 feeds an EIGHT.100 running an active 3-way front plus rear fill, while a ONE.2000 drives dual MG10 subs. One way to put the lineup together.
ONE Series: Which One & Why
Three mono Class D sub amps. They differ in one thing that matters most: how much clean power they make into the sub load. Pick by the sub(s) and final wiring impedance, not the biggest number.
ONE.600
The everyday single-sub amp. Plenty for one quality 10" or 12" sub. Smallest footprint, easiest on the electrical system.
ONE.1000
The sweet spot. Drives one big sub or a pair wired to 1Ω. Real headroom without forcing a major electrical upgrade.

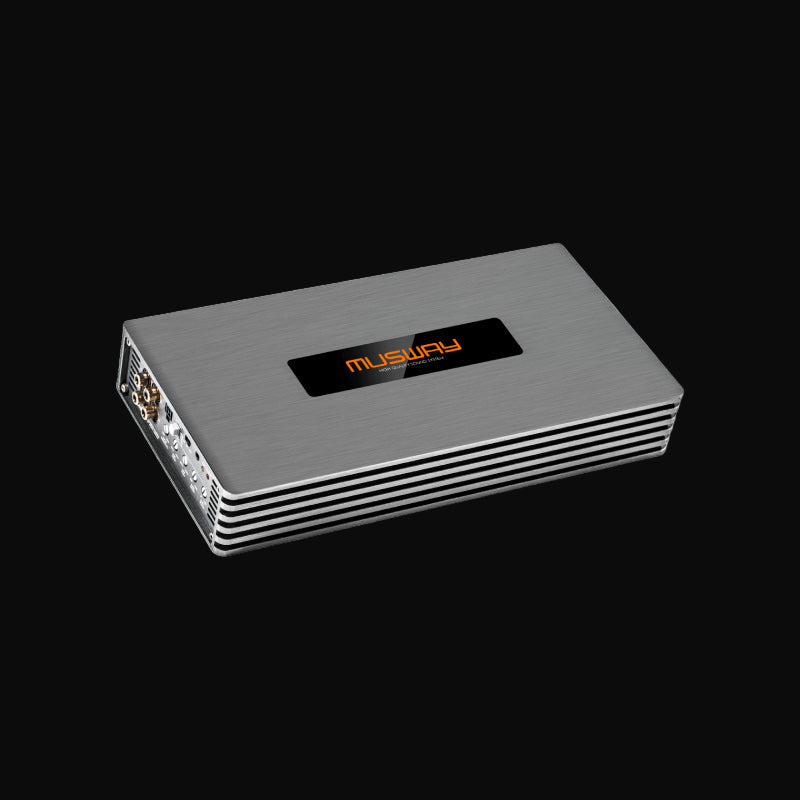

ONE.2000
The SPL / big-bass amp. For multiple subs or a power-hungry pair. Plan the electrical: big wire, fusing, and likely a charging upgrade.
| Model | Power Output | Dimensions (in) | MSRP |
|---|---|---|---|
| ONE.600 | 250W @ 4Ω | 400W @ 2Ω | 650W @ 1Ω | 7.8 x 5.9 x 1.7 | $554.95 |
| ONE.1000 | 400W @ 4Ω | 650W @ 2Ω | 1050W @ 1Ω | 9.4 x 5.9 x 1.7 | $704.95 |
| ONE.2000 | 750W @ 4Ω | 1250W @ 2Ω | 2000W @ 1Ω | 12.6 x 6.3 x 1.9 | $1,234.95 |
All three ONE Series monoblocks are rated to 1Ω. Match the amp to the sub's RMS rating and final wiring impedance for maximum clean output.

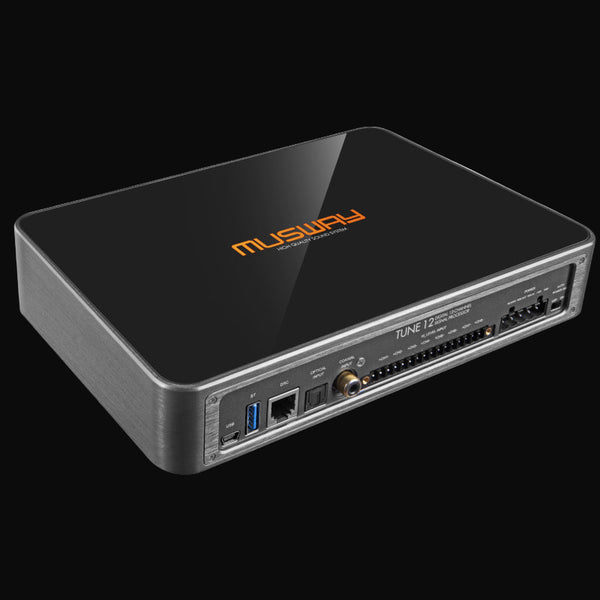

Standalone DSP For MX Builds
When you run a power amp instead of an integrated DSP amp, these handle all the signal management: crossovers, time alignment, EQ, and presets. Choose by channel count and digital-input needs.
| Model | Channels | Key Specs | Dimensions (in) | MSRP |
|---|---|---|---|---|
| DSP68 | 8 out | 6 hi-level + 6 RCA + 2 AUX + optical in | 32-bit/192kHz | THD 0.05% | ≥95dB S/N | 7.1 x 4.8 x 1.6 | $644.95 |
| TUNE12 | 12 out | 8 hi-level + 6 RCA + optical + coaxial in | 116dB S/N | THD 0.0005% | Burr-Brown | 8.6 x 5.3 x 1.4 | $1,749.95 |
Both output 6.5V RMS. TUNE12 adds the highest channel count, best signal-to-noise, and dual digital inputs for complex multi-amp and competition builds.
Three Ways To Build It
The same lineup covers a quick coaxial upgrade, a full active SQ front stage, and everything in between. Here are three starting points to pitch.
Integrated DSP Build
A single DSP amp (M5, M6, M6PRO) powers and tunes a full front stage plus a sub channel. Least wiring, cleanest install, best value. The everyday recommendation.
Power Amp + Standalone DSP
An MX power amp paired with a DSP68 or TUNE12 for a dedicated, high-channel-count tune. Scale amps and processing independently, or keep the customer's preferred DSP brand.
Add A Dedicated Monoblock
Pair any front-stage amp with a ONE Series monoblock sized to the subs. Match the amp to the final ohm load for maximum clean output without stressing the system.
